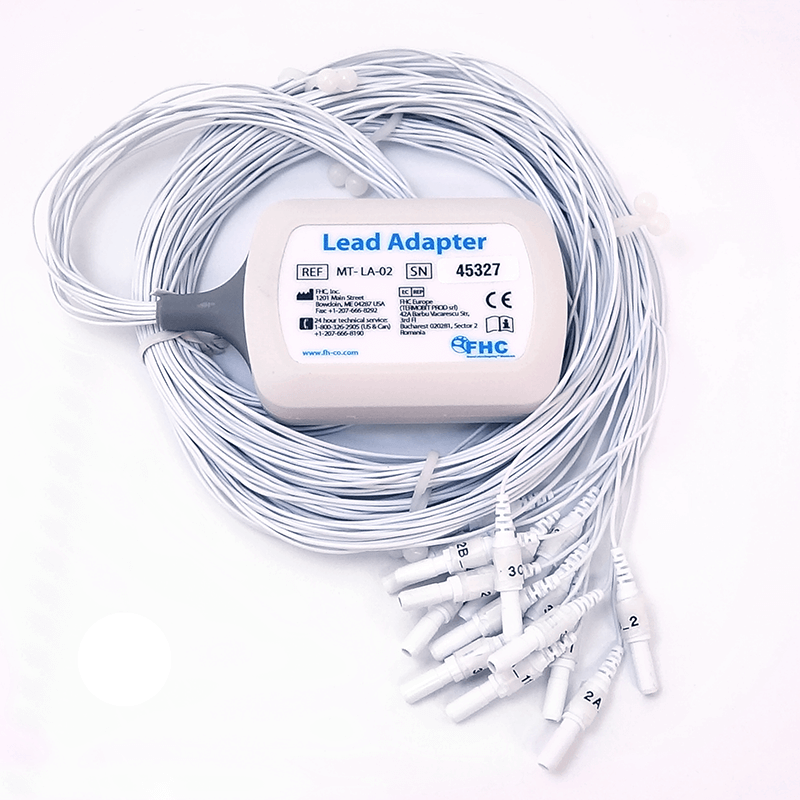

Lead Adapter

The Lead Adapter facilitates the connection to the Abbott (formerly St. Jude Medical) Infinity Lead by adapting the micro-HDMI connector of the Multi Lead Trial Cable (MLTC) to sixteen individual 1.5mm touchproof® connectors suitable for connection to the input of a medical grade data acquisition and/or stimulation system.

SKU:

MT-LA-02

Clinical Application:

Research Application:

User Profession:

Technical Details:
  • Channels: 16
  • Channel Resistance: 5 Ohms max
  • Channel to channel resistance: 50 MOhms min
  • Cable Length: 2 meters
  • Weight: 0.15 kg
  • MLTC Connector: Shrouded micro-HDMI connector (Pins 17-19 are unused)
  • Data Acquisition / Stimulation system connectors: 1.5mm touchproof® female connectors
Ordering Information:

Product number: MT-LA-02

MT-LA-02 Lead Adapter
