Pulse Generator Module (PGM)

For Research Only – Not For Human Use

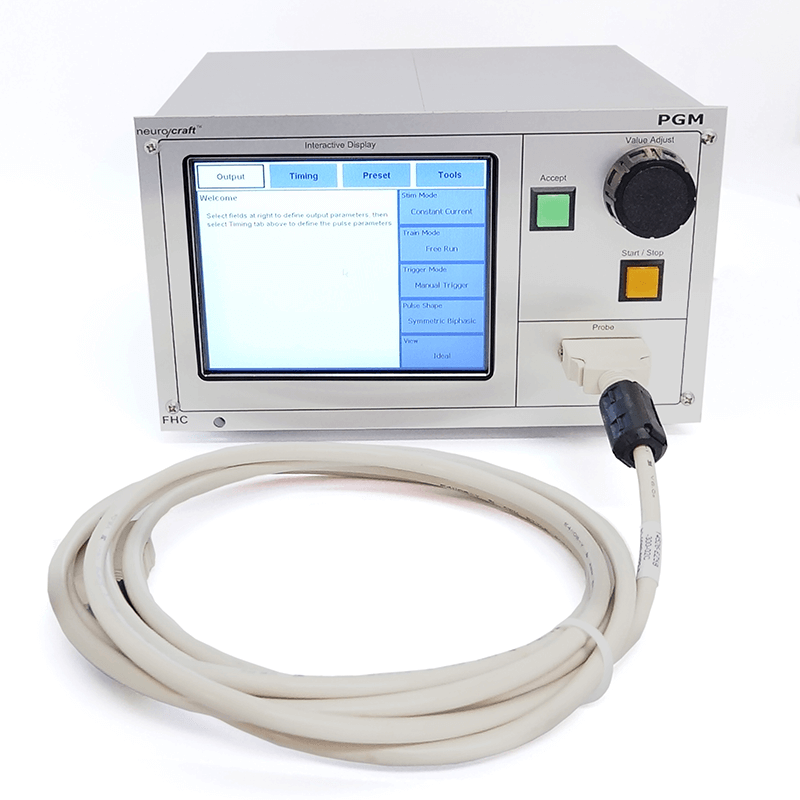

With intuitive touch-screen controls and unparalleled set of features, the Pulse Generator Module (PGM) provides timing pulses and triggers to stimulus generators or other devices. The PGM works in conjuction with the Electrical Stimulus Generator (ESG).

Optional Accessories:

SAF Rack Frame (55-11-0)

SKU:

55-60-0

Research Application:

User Profession:

Technical Details:
  • Timing Range: Accurate timing specifications for the PGM aredependent on the load, and are given under the stimulus generatordevice (ESG etc.)
  • Train Cycles: 1 – 2.1*109
  • Pulse Type: Square, ramp, sine, zeta, or custom
  • Pulse Phase: Monophasic, biphasic, or charge-balanced
  • Pulse Polarity: Positive (+) or Negative (-)
  • Cycle Latency: <1μsec between cycles
  • Timing Resolution: 1μsec, better than 100ppm
  • Digital Trigger In Latency: <10μsec
  • Touchscreen Area: 11.5cm X 8.2cm (4.5in x 3.2in) +/-0.25in
  • Touchscreen Resolution: 640X480 Color (256) min.
  • PC Interface: USB 2.0 Type B port
  • Data Port: 2ea. USB 2.0 Type A ports
  • Power Requirements: 100-240 VAC, 50-60Hz
  • Mounting Options: Tabletop, 4 rubber feet prevent sliding
  • Rack mountable with SAF Rack Frame (Cat. #55-11-0 Available separately)
Ordering Information:

Product number: 55-60-0

Included:

  • PGM Module (55-60-0)
  • Probe Communication Cable
  • USB 2.0 cable
  • Digital I/O BNC Adapter Cables
  • Male Phono Patch Cable
  • Rubber Feet
Product Sizes:
  • Height: 13cm (5.22in)
  • Width:  23cm (9in)
  • Length: 24cm (9.6in)
There are no instruction manuals for this product.
