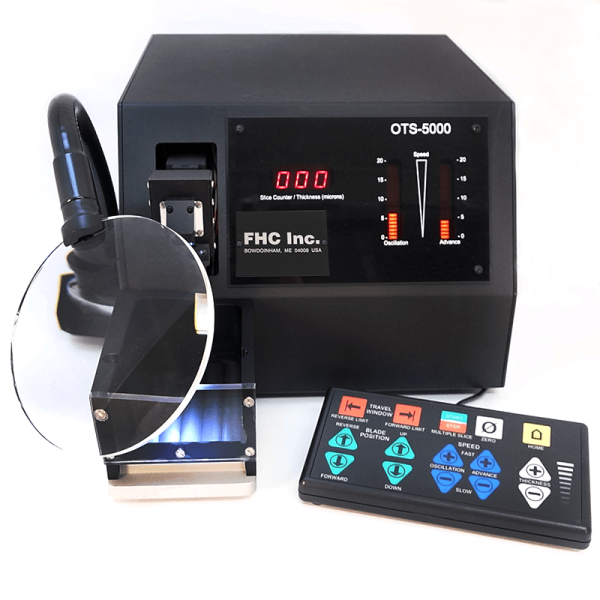

Oscillating Tissue Slicer (OTS) 5000

For Research Only – Not For Human Use

The OTS5000 Tissue Slicer sections fresh tissue slices in user-defined travel windows and reduces blade travel time between sections. Slicer head design minimizes vibration that causes tissue distortion. (<20 micron Z movement).

Optional Accessories:

Glass Blade Holder (80-12-1)
OTS Pedestal Surface (85-00-3)

OTS Sapphire Blades (85-00-6)
MRC 5000 (85-20-0)

SKU:

85-00-1

Research Application:

User Profession:

Technical Details:
  • Vertical Travel: 28mm
  • Slice Thickness: adjustable from 1 to 999 microns in 1 micron increments
  • Blade Speed: adjustable from 50 – 5000 cycles per minute
  • Blade Angle Adjustment: adjustable from 15 to 35 degrees
  • Blade Travel: 35mm total
  • Blade Types: Sapphire, Razor, Diamond, Glass
  • Blade Advance Speed: continuously adjustable from 0 to 2.5mm per second
  • Blade Reverse Speed: 2.5mm per second
  • Specimen Size: 25(w) x 25(d) x 15(h) mm maximum volume.
  • Magnifier: 4in diameter, X2 lens mounted on 12in (30cm) gooseneck, 9in working distance
  • Lighting: Focused LEDs mounted on the blade arm
  • Weight: 13kg (30lbs)
  • Working space requirements: 12inw x 18ind x 10inh (30 x 45 x 25cm)
  • Power requirements: 85-265VAC, 50-60 Hz, 500mA max universal power input. See Section 2.1.4 for instructions on selecting line cord
  • Display: 3 segment LED display of slice counter and  thickness. (Changes with appropriate buttons.) 20 segment bar graph LED display of blade oscillation and advance speed
  • Specimen Mount: X,Y axis adjustable pedestal: 1 3/4in x 2 1/2in
  • Mounting blocks : 1/2in (3 ea.) and 1in (3 ea.)
Ordering Information:

Product number: 85-00-1

Included:

  • OTS Footswitch (85-00-5)
  • OTS Tray (85-00-2)
  • OTS Magnifier (85-00-4)
  • OTS Pedestal (85-00-3)
  • OTS Specimen Vise (85-13-0)
  • OTS Mounting Blocks (2 sizes)  (80-12-2) (80-12-0)
  • Stainless Steel Slicer blade (80-11-6)
  • 1/16 Hex Driver
Product Sizes:
  • Slicer: 27cm x 40cm x 21.5cm (10.5in x 16in x 7.5in)
  • Keypad: 17cm x 8.5cm  x 3.4cm  (6.7in x 3.4in x 1.35in)

OTS5000 Tissue Slicer

Download

Danov O, Jiménez Delgado SM, Obernolte H, Seehase S, Dehmel S, Braubach P, et al. (2018) Human lung tissue provides highly relevant data about efficacy of new anti-asthmatic drugs. PLoS ONE 13(11): e0207767.

Go To Publication

Hossain, Imran et al. “A Novel Microbiosensor Microarray for Continuous ex Vivo Monitoring of Gamma-Aminobutyric Acid in Real-Time.” Frontiers in neuroscience vol. 12 500. 7 Aug. 2018

Go To Publication

G.R. Mileva, I.J. Kozak, J.E. Lewis, Short-term synaptic plasticity across topographic maps in the electrosensory system, Neuroscience, Volume 318, 2016, Pages 1-11

Lamb, D. J., Wollin, S. L., Schnapp, A., Bischoff, D., Erb, K. J., Bouyssou, T., et al. (2016). BI 1002494, a Novel Potent and Selective Oral Spleen Tyrosine Kinase Inhibitor, Displays Differential Potency in Human Basophils and B Cells. Journal of Pharmacology and Experimental Therapeutics, 357(3), 554 -561.

Go To Publication

Kamitakahara, A., Xu, B., & Simerly, R. (2016). Ventromedial hypothalamic expression of Bdnf is required to establish normal patterns of afferent GABAergic connectivity and responses to hypoglycemia. Molecular Metabolism, 5(2), 91–101.

Go To Publication
