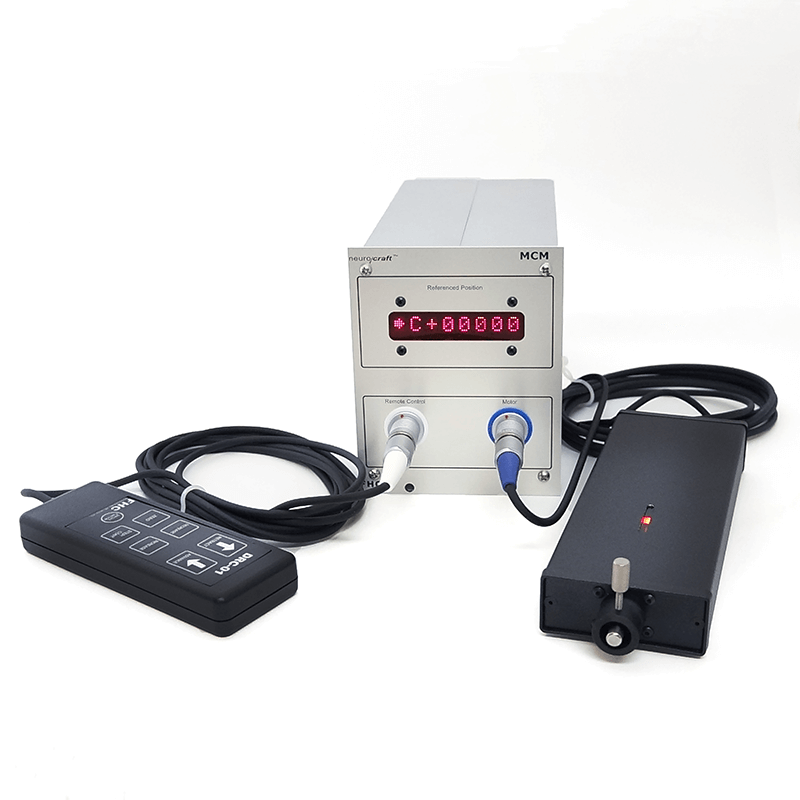

Motorized Controller Module (MCM-01)

For Research Only – Not For Human Use

The Motorized Control Module (MCM) enables precise, motorized control over probe depth, in either single-channel or multi-channel configurations.  The MCM features:

  • One micron resolution digital readout of probe depth
  • Movement of probe at a continuous rate between 1 and 500 microns/sec
  • Handheld remote control
  • Movement of probe in predefined 1, 5, or 10 micron steps
  • Probe depth data acquisition and control through serial interface
  • Quiet probe movement using the hydraulic system

Catalog Number:

50-16-1-01
Technical Details:
  • Mounting Options: Tabletop, 4 rubber feet prevent sliding. Rack mountable with SAF-08 Frame (Cat. #55-11-0 Available separately)
  • Mode of Operation: Step or Continuous (Selectable); Continuous only when using ARC-01 Remote
  • Serial Interface: RS232 Baud Rate 19200, 1 stop bit, No Parity, No Handshake, Communications Protocol: ASCII
  • Serial Cable: Noise shielded 9 pin female D-SUB (both ends), straight through, 3m (9.8′)
Ordering Information:

Product number: 50-16-1-01

Product Sizes:

Dimensions

  • Height: 13cm (5.22″)
  • Width: 10cm (4.20″)
  • Length: 25cm (9.75″)

Weight

  • 1.48 Kg (3.26 lbs)
