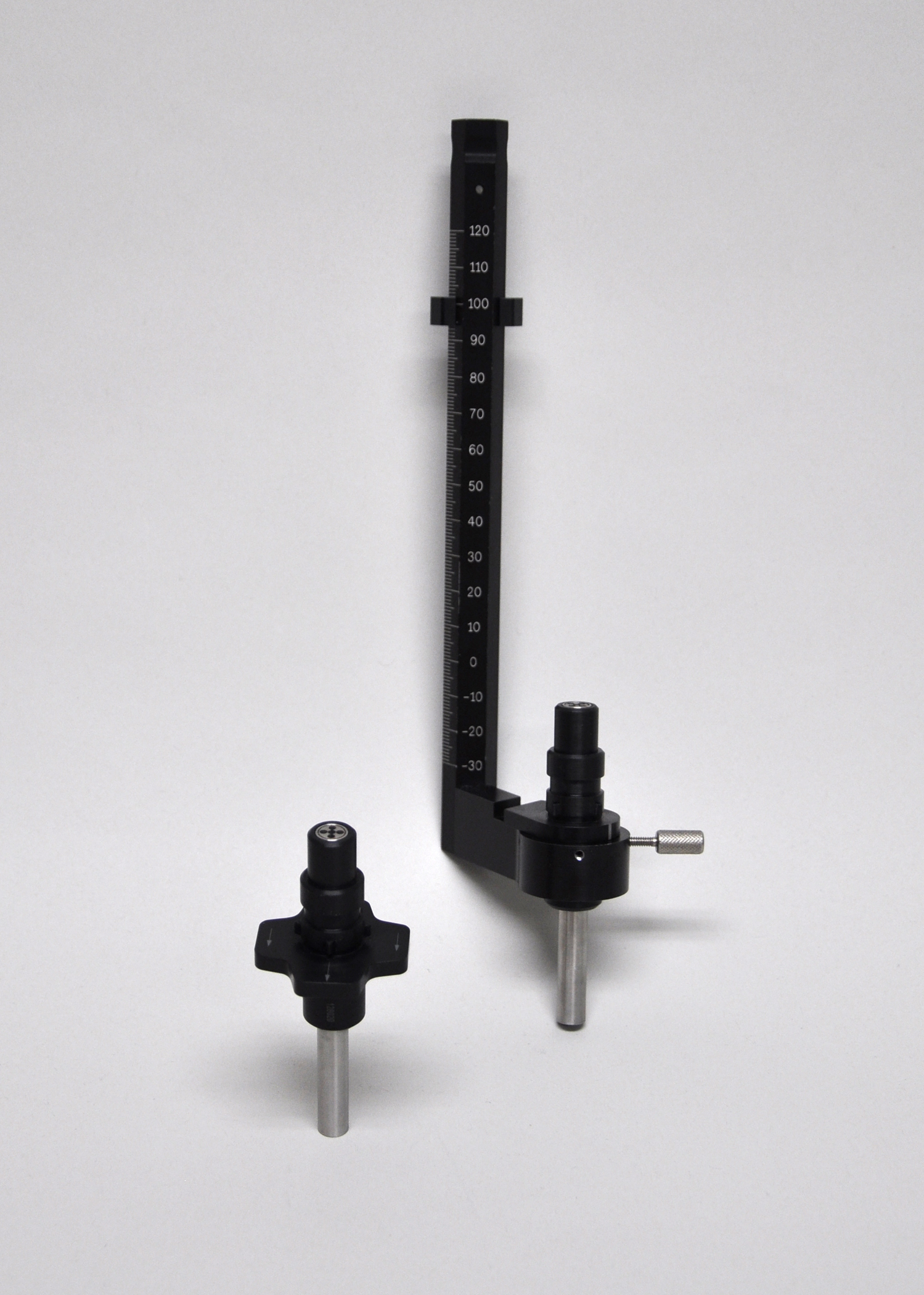

Offset Frame Adapter for Leksell Stereotactic System®

This adapter uses microTargeting™ STar™ Drive center and offset positioners to provide additional trajectory adjustment options when used in conjunction with the Leksell Stereotactic System®. The adapter includes an instrument holder to support the positioners.
The center positioner provides a five-position Ben-Gun array aligned with the frame trajectory and the offset positioner moves the Ben-Gun array 3mm off-center in 45 degree increments.
The adapter is reusable and easily sterilized in the microTargeting™ Drive sterilization tray.

Catalog Number:

70-FA-LX-01

Category:

Clinical Application:

User Profession:

Technical Details:
  • Array spacing: 2.00mm from center
  • Array guide hole diameter: 1.88mm
  • Bushing configuration: center hole on stereotactic axis with 4 holes offset by 2.00mm on center and orthogonal to the center hole
  • Offset positioner: 3.00mm from center in 45-degree increments
Ordering Information:

Product number: 70-FA-LX-01

For Leksell® Vantage™ Stereotactic System users, 70-FA-LX-01 is not compatible with the Leksell® Vantage™ Stereotactic System. Please purchase 70-FA-LX to integrate the STar Drive with the Leksell® Vantage™ Stereotactic System.

There are no instruction manuals for this product.
